A 5/2-way pneumatic valve .ye valve sugu dɔ ye min bɛ kɛ pneumatiques systems kɔnɔ min bɛ fiɲɛ walima gazi drift drift kɔlɔsi. "5/2" bɛ kuma:
5: port suguya minnu bɛ sɔrɔ valve kan. Port 5 bɛ yen:
Stress port (P): A bɛ tali kɛ fiɲɛ minɛta la.
Exhaust ports (A ani B): A bɛ kɛ ka fiɲɛ sama ka sɔrɔ a bɛ baara kɛ ni a ye.
port wɛrɛw (a ka c’a la, a bɛ kɛ ni A ni B ye): Olu bɛ kɛ ka GO manipule ni flow ye ka taa actuateurs, ka fara silindaw kan.
2: Yɔrɔw hakɛ walima u bɛ fɔ ko valve bɛna kɛ. 5/2 valve bɛ ni jɔyɔrɔ fila ye:
Yɔrɔ 1 (lafiya jɔyɔrɔ): O jɔyɔrɔ in kan, actuator port dɔ bɛ nɔrɔ sɛgɛn port (P) la, ani actuator port alternative bɛ nɔrɔ exhaust port (a ka c’a la, exhaust port A walima b).
jɔyɔrɔ 2 (actuated function): Hali ni valve bɛ wuli, portw ni ɲɔgɔn cɛ jɛɲɔgɔnyaw bɛ Changé, a bɛ fiɲɛ bila ka taa ni flow ye a kɔfɛ sira fɛ walasa ka actuator mara cogo wɛrɛ la.
5/2 cogo la pneumatic valve baarakɛcogo:
A ka c’a la, 5/2 valve bɛ kɛ ka silinda fila-fila minnu bɛ baara kɛ, olu mara (fiɲɛ degun bɛ kɛ cogo min na ka ɲɔgɔn falen-falen piston fan fila bɛɛ la).
Jɛkulu 1 : Fiɲɛ bɛ woyo ka don silinda fan kelen fɛ, o bɛ kɛ sababu ye ka pisini ta ka taa sira kelen fɛ.
Yɔrɔ 2nan : Fiɲɛ bɛ woyo ka don silinda fan dɔ fɛ, ka pisini wuli ka bɔ a kɛrɛfɛ.
Actuation (Baarakɛcogo) cogoyaw:
Manuel: A bɛ baara kɛ ni bolo dɛmɛ ye (misali la, ni levier walima pushbutton ye).

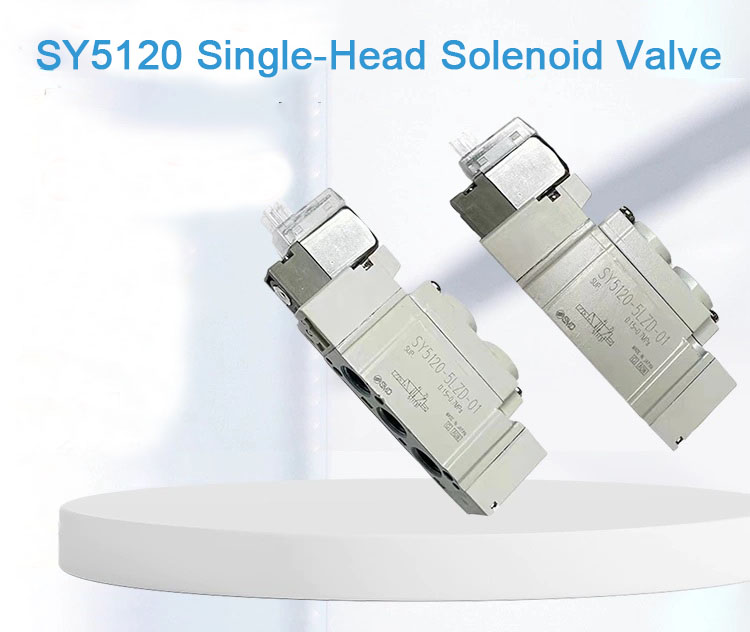

Kuran (solenoid operated): A bɛ baara kɛ ni kuran solenoid ye, o ye bobine ye min bɛ valve lamaga ka sɔrɔ ka fanga sɔrɔ.
Pneumatic (Pneumatique): Suman dɔw bɛ baara kɛ ni fiɲɛ sɛgɛn yɛrɛ ye, piloti taamasiɲɛ dɔ baaracogo walasa ka valve (datugulan) wuli.
Mekaniki: O valves fana bɛ se ka baara kɛ ni masinw ye i n’a fɔ resɔn walima cam.
Aplikasi:
Silindriw: A bɛ kɛ ka silinda fila-fila kɛ masinw na, robotiki, ɔtomatizi, ani pake suguya wɛrɛw la fiɲɛ degun ka kan ka kɛ yɔrɔ minnu na walasa ka masinw lamaga walima ka u bila u jɔyɔrɔ la.
Otomatikiw sigicogo : o tɛ ko ye min tɛ deli ka kɛ jagokɛlaw ka ɔridinatɛriw kɔnɔ walasa ka robow, fɛnw lasecogo cɛsirilanw, ani masinw yɔrɔ wɛrɛw lamagacogo ɲɛnabɔ minnu bɛ fiɲɛ suguya wɛrɛ wajibiya walasa ka lamaga.
A kunba ye, 5/2-manner valve bɛ baara gɛlɛn kɛ fiɲɛ bolicogo bɛnnen kɔlɔsili la, o b’a to a nafa ka bon kosɛbɛ ka ɲɛsin fiɲɛ silindaw ka baara kɛcogo ma.
